Automated tufting for custom rugs, carpet panels, and textile artwork

CNC Tufting
Machine

The ARAZ INNOVATIONS CNC Tufting Machine is an automated textile-production solution developed for creating custom rugs, carpet panels, decorative surfaces, and detailed tufted designs.

Specifications

Features

Automated tufting for custom rugs, carpet panels, and textile artwork

The ARAZ INNOVATIONS CNC Tufting Machine is an automated textile-production solution developed for creating custom rugs, carpet panels, decorative surfaces, and detailed tufted designs.

Its coordinated four-axis motion guides the tufting head accurately across the working frame, helping manufacturers, design studios, and creative workshops convert digital patterns into repeatable textile work with reduced manual effort.

A rigid aluminium-extrusion structure, feedback-based motion control, and a standalone CNC interface support smooth operation, dependable positioning, and flexible production for prototypes, personalized orders, and small-batch manufacturing.

Technical Specifications

Specification	Details
Machine Type	CNC Tufting Machine
Primary Application	Automated production of custom rugs, carpet panels, textile artwork, and tufted decorative surfaces
Axis Configuration	Four-axis CNC motion system
Working Area	900 x 1800 mm
Controller	Buildbotics CNC Machine Controller
Operating Environment	Standalone, PC-less machine operation through the controller's built-in interface
Program Interface	Built-in browser-based interface for configuration, G-code upload, simulation, and machine operation
Axis Motors	Closed-loop stepper motors with encoder feedback and external closed-loop drivers
X-Axis Transmission	Rack-and-pinion drive
Y-Axis Transmission	Rack-and-pinion drive
Z-Axis Transmission	Ball-screw drive
Tooling	Integrated motorized rug-tufting head
Structure	Rigid aluminium-extrusion frame with reinforced corner plates
Machine Interface	Integrated display/control station; network access may be used for setup and file transfer
Program Format	G-code

Specification note: Only the configuration details supplied for this machine are listed as product specifications. Electrical supply, tuftinggun operating range, machine dimensions, weight, speed, and production capacity should be confirmed for the final production configuration before publication

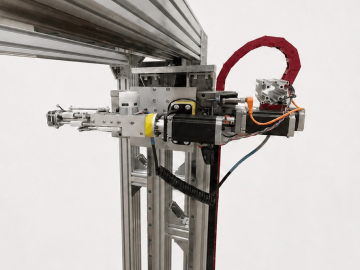

Machine & Control System

Key System Features

Feature	Benefit
Four-axis coordination	Controls the gantry and tufting-head functions as a unified CNC process.
PC-less control	Runs machine programs through the Buildbotics controller without a dedicated CNC computer.
Closed-loop motion	Encoder feedback helps the motor-drive system monitor commanded movement.
Purpose-built transmission	Rack-and-pinion drives support the long X/Y travel, while the Z-axis ball screw provides controlled tool positioning.
Digital production workflow	Accepts G-code programs generated from a compatible design and toolpath workflow.

Configuration note: Tufting-head accessories, closed-loop motor sizes, electrical requirements, and the final supply scope will be matched to the ordered production configuration and confirmed in the commercial quotation.
